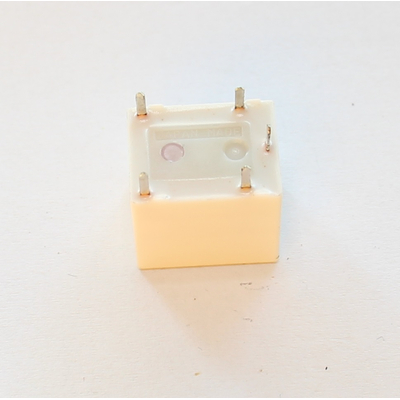

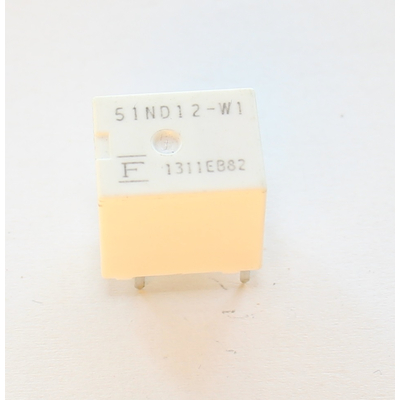

Relay 12VDC 25A SPDT - FBR51N12-W1
Description
Relay 12VDC 25A SPDT - FBR51N12-W1
- Manufacturer: FUJITSU-TAKAMISAWA
- Relay type: Electromagnetic
- Contact configuration: SPDT
- Nominal coil voltage: 12VDC
- Contact rating DC @R (resistive load): 25A / 14VDC
- Max. contact current: 35A
- Max. switching voltage: 16VDC
- Relay type: Mini
- Mounting: PCB
- Coil resistance: 240 Ohm
- Operate time: 10ms
- External dimensions: 15.5 x 12.1 x 13.7mm
- Release time: 5ms
- Operating temperature: -40...85°C
- Relay series: FBR51
- Contact material: AgSnInO
- Coil current: 50mA
