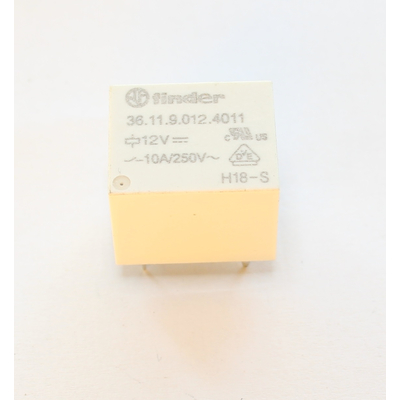

Relay 12VDC 15A 1 x on/(on) - 36.11.9.012.4011
Description
Finder Mini Relay 12VDC 15A 1 x on/(on) - 36.11.9.012.4011
- Manufacturer: FINDER
- Relay type: Electromagnetic
- Contact configuration: SPDT
- Nominal coil voltage: 12VDC
- Contact rating AC @R (resistive load): 10A / 250VAC
- Contact rating DC @R (resistive load): 10A / 30VDC
- Max. contact current: 15A
- Max. switching voltage: 250VAC, 220VDC
- Relay type: Mini
- Mounting: PCB
- Coil resistance: 400 Ohm
- Min. coil voltage: 9VDC
- Max. coil voltage: 18VDC
- External dimensions: 19 x 15.5 x 15.5mm
- Coil power consumption: 400mW
- Operating temperature: -40...85°C
- Relay series: 36.11
- Contact material: AgSnO2
- Output pitch: 2mm
