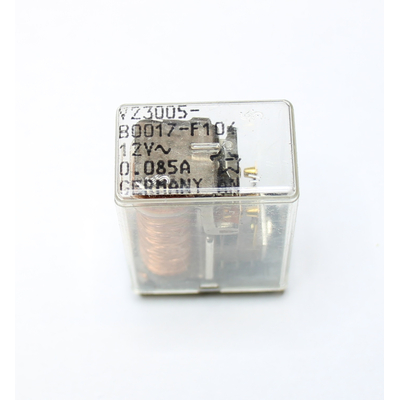

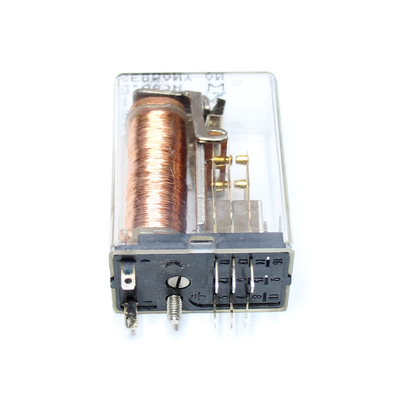

Relay 12VAC 5A 2 x um - V23005-B0017-F104
Description
Relay 12VAC 5A 2 x um - V23005-B0017-F104 Siemens
,
,
- Manufacturer: Siemens
- Relay type: Electromagnetic
- Contact configuration: DPDT
- Nominal coil voltage: 12V
- Contact rating AC @R (resistive load): 5A / 250VAC
- Contact rating DC @R (resistive load): 5A / 24VDC
- Max. contact current: 5A
- Max. switching voltage: 250V
- Mounting: Socket or solder
- Coil resistance: 40 Ohm
- External dimensions: 40 x 13 x 19mm
- Permissible ambient temperature: -40 to +70°C
