Recording Mixer MRS-1202USB

Item number: 6010040272

Category: Stage mixer

119,00 €

including 19% VAT. , (Standard)

From piece Price per unit
2 115,43 €
Currently unavailable or sold out!

Description

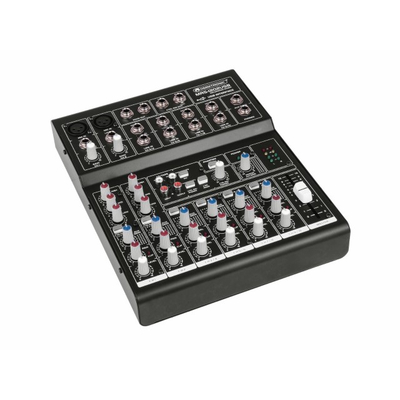

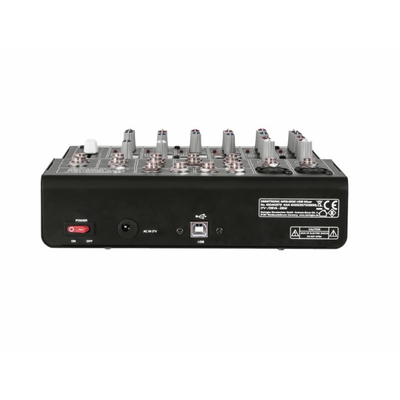

Recording Mixer MRS-1202USB
  • Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
  • Full duplex USB port: simultaneous recording and playback possible
  • 2 mono input channels with gain control, 3-way EQ, Low Cut and pan control
  • 4 stereo input channels with 3-way EQ, level switch and balance control
  • Adjustable stereo aux send output
  • Tape input and output
  • Separate main mix and control room outputs
  • Headphones output
  • +48 V phantom power, can be switched centrally
  • Precise 4-digit stereo LED level display
  • Operation via supplied power unit
  • Rugged, compact metal housing

Technical specifications:

Power supply: 230 V AC, 50 Hz ~ via supplied power unit
Power consumption: 28 W
Inputs/sensitivity:
Mic, mono 0.5 mV, XLR bal.
Line In, mono 0.5 mV, 6.3 mm jack bal.
Line In, stereo 10 mV, 6.3 mm jack L/R
Tape In 100 mV, RCA L/R
Outputs/level:
Main Out 650 mV, 6.3 mm jack L/R unbal.
Control Room Out 2 V max. 6.3 mm jack L/R unbal.
Aux Send 2 V, 6.3 mm jack unbal.
Tape Out 2 V, RCA L/R
Headphones 2 V, 6.3 mm jack unbal.
USB port: 2.0, type B
Frequency range: 20-20 000 kHz
Distortion: 0.05 %
S/N ratio: >74 dB
Tone control/channel:
Treble: ±15 dB at 12 kHz
Middle: ±15 dB at 2.5 kHz
Bass: ±15 dB at 80 Hz
Phantom power: +48 V
Dimensions (LxWxH): 270 x 215 x 72 mm
Weight: 2.2 kg
Shipping weight: 2.58 kg
Recording Mixer MRS-1202USB
  • Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
  • Full duplex USB port: simultaneous recording and playback possible
  • 2 mono input channels with gain control, 3-way EQ, Low Cut and pan control
  • 4 stereo input channels with 3-way EQ, level switch and balance control
  • Adjustable stereo aux send output
  • Tape input and output
  • Separate main mix and control room outputs
  • Headphones output
  • +48 V phantom power, can be switched centrally
  • Precise 4-digit stereo LED level display
  • Operation via supplied power unit
  • Rugged, compact metal housing

Technische Daten:

Power supply: 230 V AC, 50 Hz ~ via supplied power unit
Power consumption: 28 W
Inputs/sensitivity:
Mic, mono 0.5 mV, XLR bal.
Line In, mono 0.5 mV, 6.3 mm jack bal.
Line In, stereo 10 mV, 6.3 mm jack L/R
Tape In 100 mV, RCA L/R
Outputs/level:
Main Out 650 mV, 6.3 mm jack L/R unbal.
Control Room Out 2 V max. 6.3 mm jack L/R unbal.
Aux Send 2 V, 6.3 mm jack unbal.
Tape Out 2 V, RCA L/R
Headphones 2 V, 6.3 mm jack unbal.
USB port: 2.0, type B
Frequency range: 20-20 000 kHz
Distortion: 0.05 %
S/N ratio: >74 dB
Tone control/channel:
Treble: ±15 dB at 12 kHz
Middle: ±15 dB at 2.5 kHz
Bass: ±15 dB at 80 Hz
Phantom power: +48 V
Dimensions (LxWxH): 270 x 215 x 72 mm
Weight: 2.2 kg
Shipping weight: 2.58 kg
