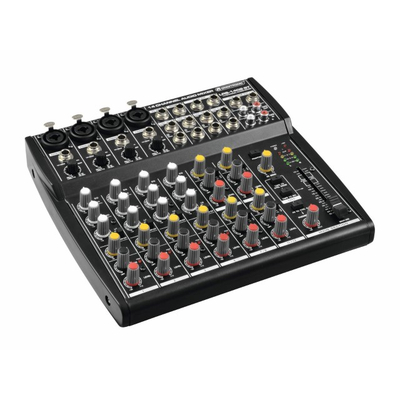

Live recording mixer with 14 inputs LRS-1402ST

Item number: 6010040229

Category: Stage mixer

139,00 €

including 19% VAT. , (Standard)

From piece Price per unit
2 134,83 €
Available

Shipping time: 2 - 5 workdays

piece

Description

Live recording mixer with 14 inputs LRS-1402ST

  • 4 mono input channels with gain control, 3-way EQ, low cut and pan control
  • 4 stereo input channels with balance control
  • Adjustable FX send output
  • Inserts for the mono input channels
  • Tape input and output
  • Separate main mix and control room outputs
  • Adjustable headphones output
  • Master fader
  • +48 V phantom power, can be switched centrally
  • Precise 4-digit stereo LED level display
  • Operation via supplied power unit

Technical specifications:

Power supply: 2 x 18.5 V AC, 350 mA
via supplied PSU
Power consumption: 10 W
Inputs/sensitivity:
Mic, mono 0.5 mV, combined XLR/6.3 mm jack bal.
Insert 140 mV, 6.3 mm jack unbal.
Line In, stereo 38 mV/150 mV, 6.3 mm jack L/R bal.
Tape In 400 mV, RCA L/R
Outputs/level:
Main Out 800 mV, 6.3 mm jack L/R unbal.
Control Room Out max. 3 V, 6.3 mm jack L/R unbal.
FX Send max. 10 V, 6.3 mm jack unbal.
Tape Out 60 mV, RCA L/R
Headphones 6.3 mm jack unbal.
Headphones impedance: >8 ohms
Frequency range: 20-20000 kHz
Distortion: <0.04 %
S/N ratio: 94 dB
Tone control/channel:
Treble: ±15 dB at 12 kHz
Middle: ±15 dB at 2.5 kHz
Bass: ±15 dB at 80 Hz
Dimensions (WxDxH): 225 x 245 x 50 mm
Weight: 1.6 kg
Shipping weight: 2.20 kg
