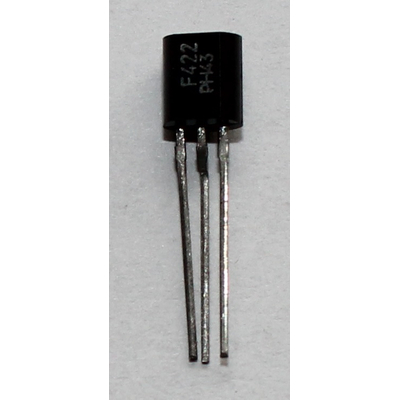

BF422 NPN 250V 200mA 830mW TO92
Description
BF422 NPN 250V 200mA 830mW TO92
- Material of Transistor: Si
- Polarity: NPN
- Maximum Collector Power Dissipation (Pc): 0.83 W
- Maximum Collector-Base Voltage |Vcb|: 250 V
- Maximum Collector-Emitter Voltage |Vce|: 250 V
- Maximum Emitter-Base Voltage |Veb|: 5 V
- Maximum Collector Current |Ic max|: 0.2 A
- Max. Operating Junction Temperature (Tj): 150 °C
- Transition Frequency (ft): 60 MHz
- Collector Capacitance (Cc): 1.6 pF
- Forward Current Transfer Ratio (hFE), MIN: 50
- Noise Figure, dB: -
- Package: TO92
