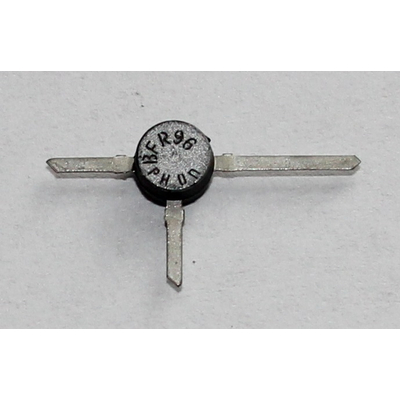

BFR96 NPN 15V 15mA 500mW TO51
Description
BFR96 NPN 15V 15mA 500mW TO51
- Material of Transistor: Si
- Polarity: NPN
- Maximum Collector Power Dissipation (Pc): 0.5 W
- Maximum Collector-Base Voltage |Vcb|: 20 V
- Maximum Collector-Emitter Voltage |Vce|: 15 V
- Maximum Collector Current |Ic max|: 0.15 A
- Max. Operating Junction Temperature (Tj): 175 °C
- Transition Frequency (ft): 5000 MHz
- Forward Current Transfer Ratio (hFE), MIN: 30
- Noise Figure, dB: -
- Package: TO51
