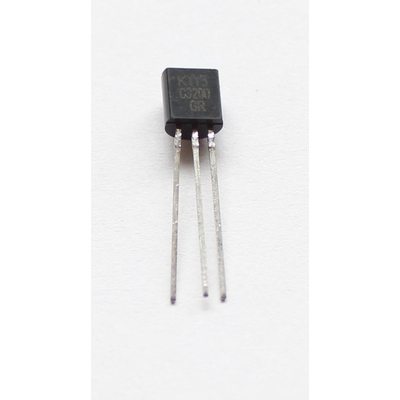

2SC3200 NPN 120V 0,1A 0,3W TO92
Description
2SC3200 NPN 120V 0,1A 0,3W TO92
- 2SC3200
- Material of Transistor: Si
- Polarity: NPN
- Maximum Collector Power Dissipation (Pc), W: 0.3
- Maximum Collector-Base Voltage |Vcb|, V: 120
- Maximum Collector-Emitter Voltage |Vce|, V:
- Maximum Emitter-Base Voltage |Veb|, V:
- Maximum Collector Current |Ic max|, A: 0.1
- Max. Operating Junction Temperature (Tj), °C: 175
- Transition Frequency (ft), MHz: 100
- Collector Capacitance (Cc), pF:
- Forward Current Transfer Ratio (hFE), min: 10
- Noise Figure, dB: -
- Package: TO92
