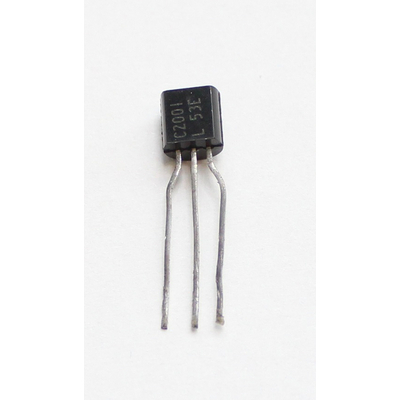

2SC2001 NPN 30V 700mA 700mW TO92
Description
2SC2001 NPN 30V 700mA 700mW TO92
- Material of Transistor: Si
- Polarity: NPN
- Maximum Collector Power Dissipation (Pc): 0.7 W
- Maximum Collector-Base Voltage |Vcb|: 30 V
- Maximum Collector-Emitter Voltage |Vce|: 25 V
- Maximum Emitter-Base Voltage |Veb|: 5 V
- Maximum Collector Current |Ic max|: 0.7 A
- Max. Operating Junction Temperature (Tj): 150 °C
- Transition Frequency (ft): 85 MHz
- Collector Capacitance (Cc): 13 pF
- Forward Current Transfer Ratio (hFE), MIN: 90
- Noise Figure, dB:
- Package: TO92
