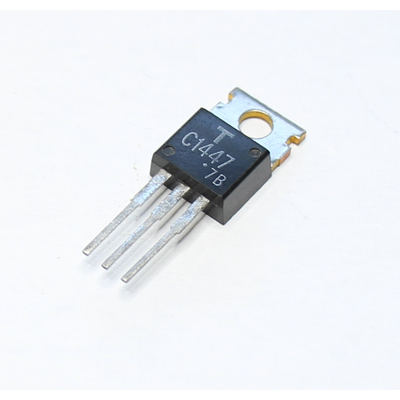

2SC1447 NPN 300V 150mA 20W TO220
Description
2SC1447 NPN 300V 150mA 20W TO220
- Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 20
Maximum collector-base voltage |Ucb|, V: 300
Maximum collector-emitter voltage |Uce|, V: 300
Maximum emitter-base voltage |Ueb|, V: 5
Maximum collector current |Ic max|, A: 0.15
Maksimalna temperatura (Tj), °C: 150
Transition frequency (ft), MHz: 40
Collector capacitance (Cc), pF: 12
Forward current transfer ratio (hFE), min: 40
Noise Figure, dB: -
Package of 2SC1447 transistor: TO220
