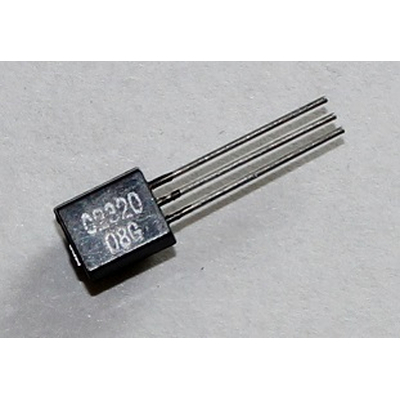

2SC2320 NPN 50V 200mA 300mW TO92
Description
2SC2320 NPN 50V 200mA 300mW TO92
- Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.3 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 0.2 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 100 MHz
Collector Capacitance (Cc): 3.5 pF
Forward Current Transfer Ratio (hFE), MIN: 90
Noise Figure, dB: -
Package: TO92
