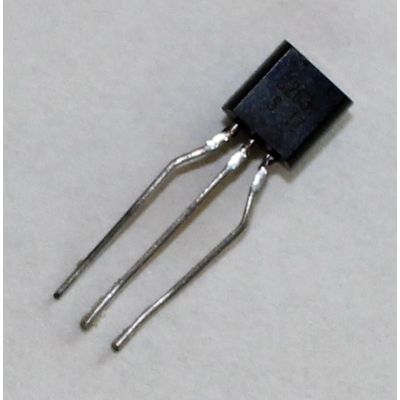

2SC2631 NPN 150V 50mA 750mW TO92

Item number: 2SC2631

Category: 2SC...


0,75 €

including 19% VAT. , (Standard)

Currently unavailable or sold out!


Description

2SC2631 NPN 150V 50mA 750mW TO92
    Material of Transistor: Si
    Polarity: NPN
    Maximum Collector Power Dissipation (Pc): 0.75 W
    Maximum Collector-Base Voltage |Vcb|: 150 V
    Maximum Collector-Emitter Voltage |Vce|: 150 V
    Maximum Emitter-Base Voltage |Veb|: 5 V
    Maximum Collector Current |Ic max|: 0.05 A
    Max. Operating Junction Temperature (Tj): 150 °C
    Transition Frequency (ft): 80 MHz
    Collector Capacitance (Cc): 2 pF
    Forward Current Transfer Ratio (hFE), MIN: 65
    Noise Figure, dB: -
    Package: TO92
