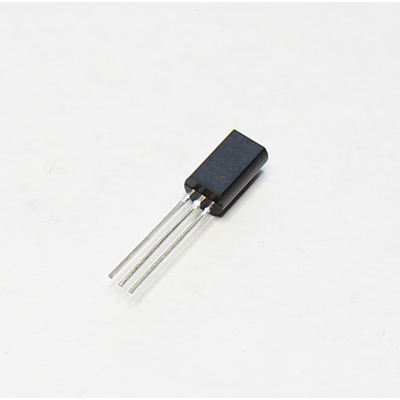

2SC2229 NPN 200V 50mA 800mW TO92

Item number: 2SC2229

Category: 2SC...

0,35 €

including 19% VAT. , (Standard)

From piece Price per unit
5 0,34 €
10 0,33 €
In stock!

Shipping time: 2 - 5 workdays

piece

Description

2SC2229 NPN 200V 50mA 800mW TO92
    Material of Transistor: Si
    Polarity: NPN
    Maximum Collector Power Dissipation (Pc): 0.8 W
    Maximum Collector-Base Voltage |Vcb|: 200 V
    Maximum Collector-Emitter Voltage |Vce|: 150 V
    Maximum Emitter-Base Voltage |Veb|: 5 V
    Maximum Collector Current |Ic max|: 0.05 A
    Max. Operating Junction Temperature (Tj): 150 °C
    Transition Frequency (ft): 60 MHz
    Collector Capacitance (Cc): 5 pF
    Forward Current Transfer Ratio (hFE), MIN: 70
    Noise Figure, dB: -
    Package: TO92
