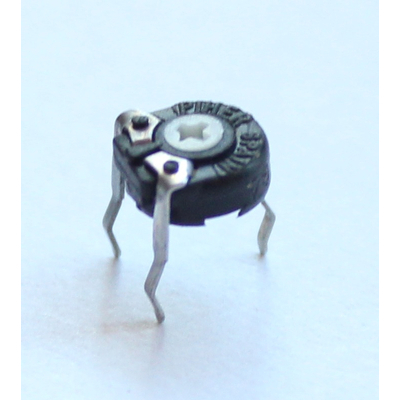

Trimmer liegend PT6 1K
Description
Horizontal trimmer PT6 1K
- Manufacturer: PIHER
- Potentiometer type: for installation
- Potentiometer design: 1-turn, horizontal
- Resistance: 1K Power: 100mW
- Tolerance: ±20%
- Characteristics: linear
- Potentiometer series: PT6LV
- Potentiometer standard: 6mm
- Mechanical angle of rotation: 235 ±5°
- Torque: 0.2...2Ncm
- Max. Operating voltage: 100V
- Operating temperature: -25...70°C
- Print mounting
- Output pitch: 5x5mm
- Path material: Carbon
- Electrical angle of rotation: 220 ±20°
- Housing dimensions: Ø6.3 x 3.3mm
