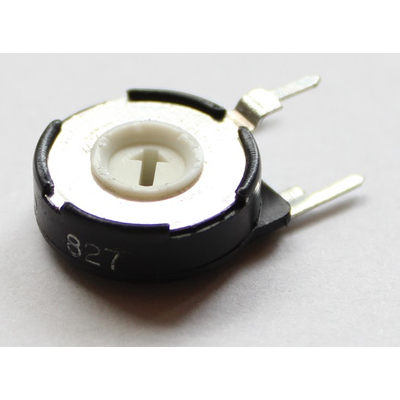

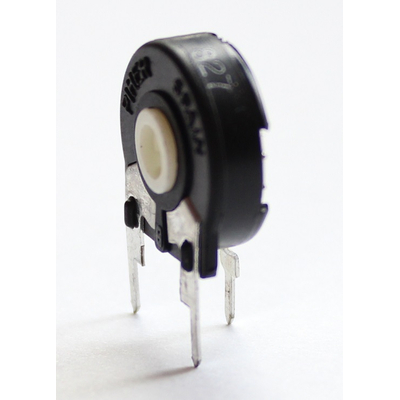

Trimming potentiometer vertical PT15LH 250K

Item number: PT15LH250K

Category: PT-15 from PIHER

0,40 €

including 19% VAT. , (Standard)

In stock!

Shipping time: 2 - 5 workdays

piece

Description

PT15LH Vertical Trimmer Potentiometer 250K with Thumbwheel
  • Manufacturer: PIHER
  • Potentiometer type: PCB mount
  • Potentiometer design: Single-turn, vertical
  • Resistance: 250K
  • Power rating: 150mW
  • Tolerance: ±20%
  • Characteristic: Linear
  • Potentiometer series: PT15LH
  • Potentiometer standard: 15mm
  • Mechanical rotation angle: 265 ±5°
  • Torque: 0.5...2.5 Ncm
  • Max. operating voltage: 250V
  • Operating temperature: -25...70°C
  • Mounting: THT
  • Terminal pitch: 5x10mm
  • Track material: Carbon
  • Electrical rotation angle: 250 ±20°
  • Housing dimensions: Ø15 x 8mm
