Tqualization preamplifier - TC20
Description
Tqualization preamplifier - TC20

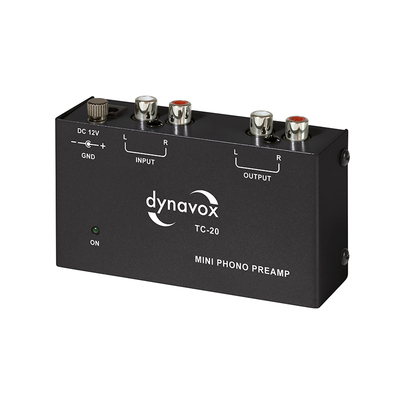

The Dynavox TC-20 (MM) phono pre-amplifier, for the use of turntables on amplifiers without phono input. The compact phono pre-amplifier in a metal housing offers high sound quality and, with an external power supply unit (included), ensures minimal hum interference. Signal inputs and outputs via stereo cinch, earthing screw, operating LED.
The Dynavox TC-20 (MM) phono pre-amplifier, for the use of turntables on amplifiers without phono input. The compact phono pre-amplifier in a metal housing offers high sound quality and, with an external power supply unit (included), ensures minimal hum interference. Signal inputs and outputs via stereo cinch, earthing screw, operating LED.
Technical data:
- Frequency response 20 Hz - 20 kHz (+/- 2 dB)
- Output voltage 2 V max. (P-P) at 10 kOhm
- Harmonic distortion 0.08% (1 kHz / 3mV)
- Input sensitivity 3 mV
- Input impedance 50 kOhm
- Load impedance 10 kOhm

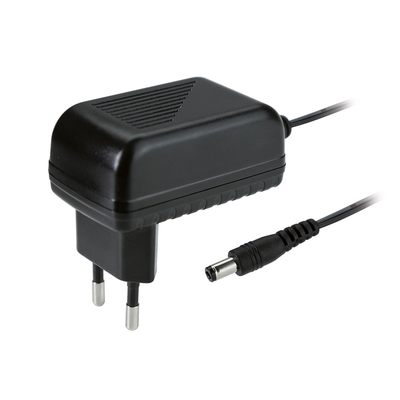

- Power pack 230 V (AC) / 50 Hz to 12 V (DC) / 150mA
- Weight 0.23 kg
- Color black
- Dimensions approx. (L x W x H) 105 x 65 x 32 mm.
