Equalization preamplifier - LH-040
Description

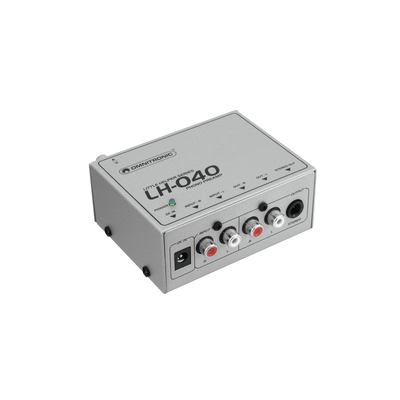

Equalization preamplifier - LH-040
1-channel phono preamplifier (stereo)
1-channel phono preamplifier (stereo)
- Connect to a turntable via stereo RCA input
- RCA output for connection to active speakers or stereo
- Direct connection to the power amplifier via jack socket possible
- Ground terminal to prevent ground loops

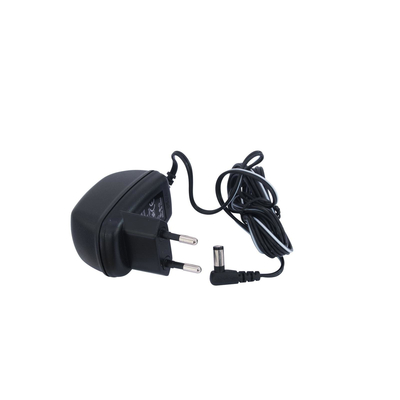

- Power supply via supplied power adapter
- Power connection: Power supply Receptacle (M) Recessed version Power connection cable with AC adapter (m) (supplied
Technical data
| Power supply: | 12V DC, 150mA |
| Gain: | 30 dB / 1 kHz |
| Input impedance: | 47 kOhm |
| Maximum output voltage: | 4 V rms |
| Frequency range: | 20-20000 Hz, ± 1 dB (RIAA standard) |
| Ger & auml; uschspannungsabstand: | > 84 dB (A-weighted) |
| Distortion: | 0.02% |
| Connection input: | Cinch stereo |
| Port output: | Cinch stereo, jack-mount socket |
| weight | 0.454 kg |
| H & ouml; he: | 4.5 cm |
| Depth: | 7.3 cm |
| width | 9.5 cm |
| electricity | Power supply female connector (M) built-in version Power connector cable with power adapter (m) |
