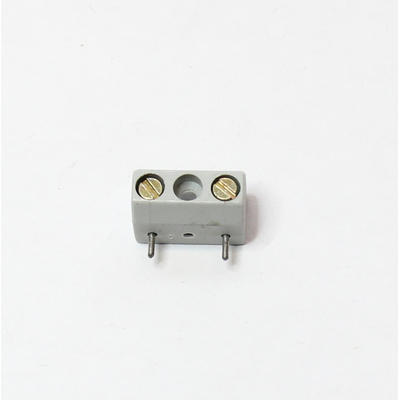

Terminal strip for PCB assembly 2 poles 10mm pitch
Description
Terminal strip for PCB mounting 2-pole 10mm pitch
- Manufacturer -
Connector type Terminal strip for print mounting
Spatial orientation with 180° angle
Contact pitch 10mm
Number of ways 2
Mechanical assembly on PCB
Electrical assembly screw terminal,
THT connector terminal
Contact coating tin-plated
Rated current 10A
Length 45mm
Height 10mm
Color brown
Nominal voltage 300V
Housing material polyamide
Connector
Properties -
Length 5mm Depth 10mm
Flammability class -
Connector output system 1x2
Complies with standard -
Cable size 26AWG...16AWG
Cable cross section 0.25...1.5mm2
