Description
- LCD display for temperature, operating mode, and protection function
- Internal crossover 120 Hz, 24 dB/octave, switchable for subwoofer, full-range, or satellite operation
- 3 adjustable operating modes (stereo, parallel, or bridge)
- Temperature-controlled fans
- 2 level controls
- Ground lift function
- Speaker switch-on delay
- Short circuit protected Overheating and DC voltage overlay at the outputs are protected by a protective circuit with LED indicator.
- LEDs for operating voltage, level, and limiter on each channel.
- NEUTRIK SPEAKON connectors.
STA-1400, STA-1000, and STA-600 are supplied with IEC power connectors and matching power cables.
BEAT 01/2012
"For the test, we brought two MEGA-112s as top units and a MEGA-118SUB to the start. As power amplifiers, we used the STA-600 and the STA-1400 for the top units in bi-amping, and the STA-1000 for the bass. We treated ourselves to the DSM-260 digital loudspeaker management system as official control. The test location is a small factory hall... the factory hall, with its many windows, concrete floor, and numerous tiled surfaces, makes all the highs merciless... we quickly tame them with the DSM-260's precise EQs... we quickly and intuitively optimized the sound. ... we went full throttle and were impressed. The sub really raises the alarm and proves to be extremely stable. The The MEGA-112 impresses with its great balance. The result is rich, dynamic dance music with a truly excellent sound. 400 guests, even those with more discerning ears, can easily be professionally sounded with this PA. We like that. If you frequently perform in different spaces, then the PA combination chosen here is very practical."
Technical Specifications
- Total output power 1600W
- Rated power 1000W 4 Ohm / 2 x 500W 8 Ohm / 2 x 350W 8 Ohm / Bridge operation 1 x 1000W
- Channels 2
- Inputs 1 V/20 KOhm
- Frequency range 20-20000 Hz
- Crossover 24 dB/oct.
- Crossover frequency 120 Hz
- Integrated limiter yes
- ,S/N ratio > 95dB
- Crosstalk attenuation > 60dB
- Total harmonic distortion < 0.1
- Power supply 230VAC
- Mains frequency 50Hz
- Power consumption during operation 1600VA
- Operating temperature 0-40 °C
- Dimensions Width 482mm / Height 88mm / Depth 418mm
- Rack units HE
- Weight 15 kg

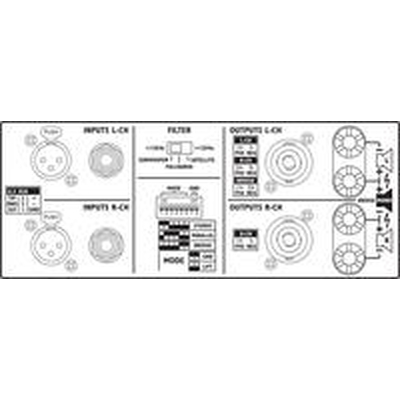

Connectors
- 1 x 3-pin XLR L/R, balanced
- 1 x 6.3 mm jack L/R, balanced
- 1 x NEUTRIK SPEAKON L/R
-
2 x Screw terminal pair
Safety and Warning Information
- The device is supplied with dangerous mains voltage. Therefore, never attempt to tamper with it yourself and do not insert anything into the ventilation openings. There is a risk of electric shock. Do not operate the device and immediately unplug the power cord if there is visible damage to the device or the power cord, if a defect is suspected after a fall or similar, or if malfunctions occur. Always take the device to a specialist workshop for repair. Use the device indoors only and protect it from dripping and splashing water, high humidity, and heat (permissible operating temperature range 0 - 40 °C). Never pull the power plug from the socket by the cable; always grasp the plug. The heat generated within the device must be dissipated through air circulation. Therefore, do not cover the ventilation openings on the housing. If the device is to be permanently decommissioned, please take it to a local recycling facility for environmentally friendly disposal.
