PA amplifier 600Wmax for general applications - STA-500

• fan cooling
• 2 level control
• Ground Lift switch
• Speaker on delay & ouml; delay
• Protected against short circuits, overheating and DC overshoot at the outputs due to protection circuit with LED indication
• Per channel 1 LED for override (clip)

Specifications:

4 ohms : 2x200 Wrms
8 ohms : 2x125 Wrms
Power rating: 400W
Max. Power: 600 Wmax
inputs: 1.3 V / 55 kO 1 V / 20 kO
frequency range: 10-20,000 Hz Stouml. discrepancy: 0.05%
power supply: 230 V~ / 50 Hz / 730 VA
Perm. Operating temperature: 0-40 ° C
Dimensions: 482x88x418; mm, 2; HE
Weight:; 7.6; kg

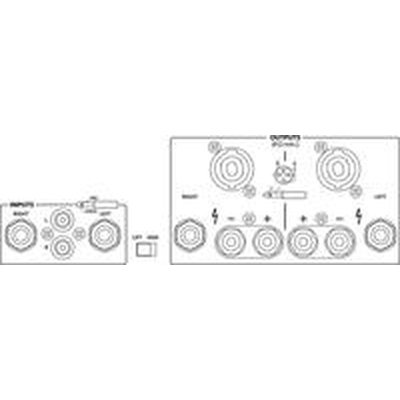

Connections:

1 x 6.3 mm jack L / R
1 x RCA L / R
2 x SPEAKER
1 x 6.3 mm jack L / R
2 x screw terminal pair

Safety and Warning Information

The device is supplied with dangerous mains voltage. Therefore, never attempt to tamper with it yourself and do not insert anything into the ventilation openings. There is a risk of electric shock. Do not operate the device and immediately unplug the power cord if there is visible damage to the device or the power cord, if a defect is suspected after a fall or similar, or if malfunctions occur. Always take the device to a specialist workshop for repair. Use the device indoors only and protect it from dripping and splashing water, high humidity, and heat (permissible operating temperature range 0 - 40 °C). Never pull the power plug from the socket by the cable; always grasp the plug. The heat generated within the device must be dissipated through air circulation. Therefore, do not cover the ventilation openings on the housing. If the device is to be permanently decommissioned, please take it to a local recycling facility for environmentally friendly disposal.
