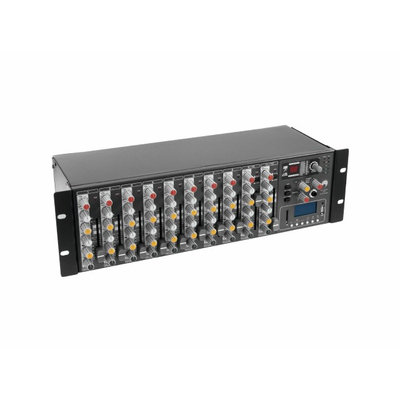

Professional 19" mixer with 12 channels DSP FX unit and MP3 player - RM-1422FX USB
Description
Professional 19" mixer with 12 channels DSP FX unit and MP3 player - RM-1422FX USB
Compact all-rounder
Whether it is used as small live mixer, recording studios or permanent installations-the RM--1422FX is the right answer for your 19" rack. Along with a full-fledge audio mixer, you'll get an FX unit, an MP3 player for external USB and SD storage media, and most importantly, a USB audio interface for recordings and playback with your computer in the smallest of spaces.
Compact all-rounder
Whether it is used as small live mixer, recording studios or permanent installations-the RM--1422FX is the right answer for your 19" rack. Along with a full-fledge audio mixer, you'll get an FX unit, an MP3 player for external USB and SD storage media, and most importantly, a USB audio interface for recordings and playback with your computer in the smallest of spaces.
- Built-in USB audio interface allows recordings and playback of digital audio files with a computer (PC and Mac)
- 24 bit DSP FX unit with 16 different effects, e.g. reverb, echo and flanger
- 6 mono input channels with gain control, 2-way EQ, pan control and channel fader
- 2 stereo input channels with 2-way EQ, balance control and channel fader
- 8 channel inserts
- Tape input and output
- Separate main mix and control room outputs
- 2 aux send outputs
- Adjustable headphones output
- +48 V phantom power, can be switched centrally
- 4-digit stereo LED level display
- MP3 player with SD card slot, USB input, LCD and IR remote control
- Digital signal processor 24 bit with 16 effects
- Controlling by IR remote control
- Monochrome LCD display; monochrome 2 digits 7-segment LED display
- (19") 48.3 cm rack installation 3 U
TECHNICAL SPECIFICATIONS
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 50 W |
| Protection class: | Protection class I |
| Power connection: | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Device fuse: | 5 x 20 mm, T 0,5 A Fuse replaceable |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >89 dB |
| THD: | <0,05 % at 1 kHz |
| DSP: | Digital signal processor 24 bit with 16 effects |
| Control: | IR remote control |
| Audio player: | USB + SD |
| Housing color: | Silver |
| Display type: | Monochrome LCD display Monochrome 2 digits 7-segment LED display |
| Control elements: | Phantom power switch, Audio player, encoder |
| Status LED: | Power, master level meter, clip, phantom power |
| Connections: | Input: Microphone via 8 x 3-pin XLR Input: line via 12 x 6.3 mm jack socket (mono) mounting version Input: 2-Track via 1 x stereo RCA Input: AUX returns via 2 x 6.3 mm jack socket (mono) mounting version Output: AUX sends via 2 x 6.3 mm jack socket (stereo) mounting version Output: 2-Track via 1 x stereo RCA Output: master via 2 x 3-pin XLR Output: headphones via 1 x 6.3 mm jack socket (stereo) mounting version Output: control room via 2 x 6.3 mm plug (unbal.) Insert: 8 x 6.3 mm jack socket (stereo) mounting version Link: line via 1 x USB B (F) mounting version |
| Channels: | Input chanel: 8 x mono via XLR or jack, channel control via fader, 2-band tone control EQ ±15dB at 80Hz/12kHz, 2 Send/AUX, gain control, panoramacontol, Input chanel: 1 x stereo with Line-USB switch via Plug 6,3mm/3,5mm (Jack), channel control via fader, 2-band tone control EQ ±15dB at 80Hz/12kHz, 2 Send/AUX, gain control, balancecontrol, Input chanel: 1 x stereo with Line-player switch via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial, 2-band tone control EQ ±15dB at 80Hz/12kHz, 2 Send/AUX, gain control, balancecontrol, Master output: 1 x stereo via XLR, channel control via Rotary dial Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary dial |
| USB port: | 1 x Typ A; 1 x USB 1.1, Typ B |
| Material: | Metal |
| Housing design: | (19") 48.3 cm rack installation 3 U |
| Dimensions: | Width: 48,3 cm Depth: 18 cm Height: 13,35 cm |
| Weight: | 4,07 kg |
| Remote control | |
