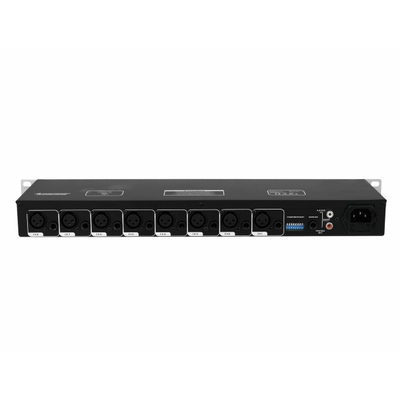

8 Channel microphone line mixer - MLM-81

Item number: 6010304150

Category: Mixers

229,00 €

including 19% VAT. , (Standard)

From Price per unit
2 222,13 €
Available

Shipping time: 2 - 5 workdays

Description

8 Channel microphone line mixer MLM-81
  • For mixing up to 8 mono input signals to 1 mono output
  • 8 mic/line channels with separate level and tone controls and signal LEDs
  • Each channel with balanced XLR mic input and unbalanced 6.3 mm jack (1/4") input
  • Each mic input with optional 12 V phantom power via DIP switches
  • Master level control; master out via balanced 6.3 mm jack (1/4")
  • Feed-through output (independent of master control) for connecting a further MLM-81
  • Each 6.3 mm line input can be separately converted to a line output via internal jumpers
  • Rack installation, 1 U

Technical specifications:

Power supply: 230 V AC, 50 Hz ~
Power consumption: 10 W
Input impedance: 600 ohms (Mic), 18 kohms (Line), 10 kohms (Aux Bus)
Max. input level: -23 dBV (Mic), +22 dBV (Line)
Phantom power: 12 V
Max. output level: +17 dBV
Output impedance: 51 ohms
Max. gain: 69 dB (Mic), 26 dB (Line)
Distortion: <0.003 %
S/N ratio: 106 dB
Dimensions (WxDxH): 482 x 152 x 44 mm
Weight: 3 kg
Shipping weight: 2.75 kg
