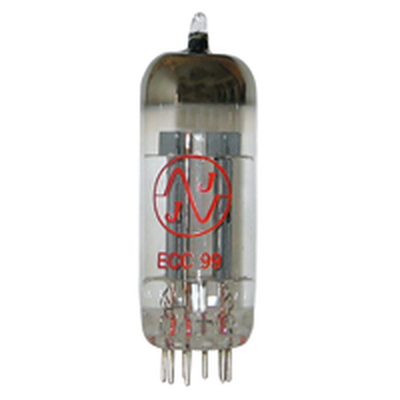

Preamplifier tube ECC99 - JJ

Item number: Röhre ECC99

Category: Tubes

44,75 €

including 19% VAT. , (Standard)

From piece Price per unit
2 43,41 €
Available

Shipping time: 2 - 5 workdays

piece

Description

Preamplifier tube ECC99 - JJ
  • R. F. DOUBLE TRIODE.
  • Uf = 6.3 / 12.6V
  • If = 800 / 400mA


Characteristics:

  • Ua = 150V
  • Ug = -4V
  • Ia = 18mA
  • S = 9.5mA/V
  • Ri = 2.3kOhm
  • æ = 22


Limits:

  • Ua = 400V
  • Ik = 60mA
  • Uk/f = 200V
  • Wa = 5W


Capacitance (system I):

  • Cg/k = 5.8pF
  • Ca = 0.91pF
  • Cg/a = 5.1pF


Capacitance (system II):

  • Cg/k = 5.8pF
  • Ca = 0.81pF
  • Cg/a = 5.1pF



  • Can also be used instead of the 5687, E182CC, 6840 and 6BL7
  • Dimensions (H/H with pins x diameter): 62.2/68.4 x 22 mm
