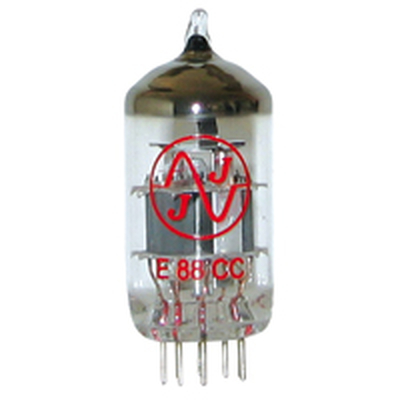

Preamp tube E88CC 6922, 6DJ8

Item number: Röhre E88CC

Category: Tubes

34,50 €

including 19% VAT. , (Standard)

From piece Price per unit
2 33,46 €
Available

Shipping time: 2 - 5 workdays

piece

Description

Preamp tube E88CC 6922, 6DJ8
  • R. F. DOUBLE TRIODE.
  • Uf = 6.3
  • If = 3.65mA


Characteristics:

  • Ua = 19V
  • Ug = -1.3V
  • Ia = 15mA
  • S = 12.5mA/V
  • Ri = 2.6kOhm
  • æ = 33


Limits:

  • Ua0 = 550V
  • Ua(la=0) = 400V
  • Ua = 200V
  • Ua(Was<0.8W) = 250V
  • PaR = 1.5W
  • Wg1R = 0.03W
  • Ik = 20mA
  • Rg = 1MOhm
  • U+k/f- = 120V
  • Uk/f+ = 60V
  • Wa = 5W


Capacitance (system I):

  • Cg/k = 3.1pF
  • Ca = 0.18pF
  • Cg/a = 1.4pF


Capacitance (system II):

  • Cg/k = 3.1pF
  • Ca = 0.18pF
  • Cg/a = 1.4pF
  • Dimensions (H/H with pins x Ø.): 49.2/55.6 x 22 mm
