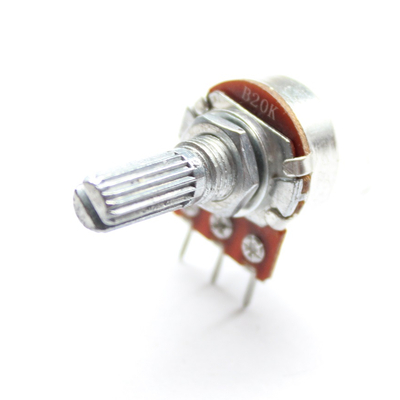

Potentiometer axial mono 20K lin
Description
Potentiometer axial mono 20K lin
With slotted 6 mm axle, for 18 tooth push-on knobs, with nut fastening and print board solder connections.
With slotted 6 mm axle, for 18 tooth push-on knobs, with nut fastening and print board solder connections.
- Manufacturer SR Passives
Potentiometer type axial
Potentiometer design 1-turn
Resistance 20K
Power 125mW
Tolerance ±20%
Mounting THT
Axis diameter 6mm
Axle length 9mm
Linear characteristics

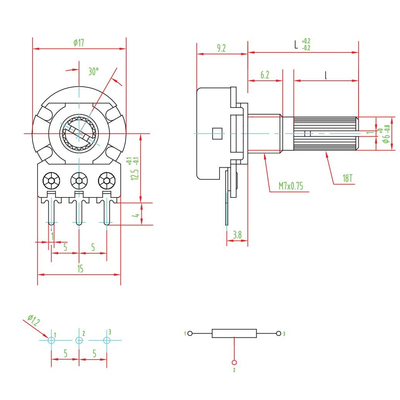

Housing dimensions Ø17 x 9.2mm
Thread length 6mm
Housing material metal
Outputs PCB mounting
Path material carbon Potentiometer properties mono
Axle surface knurled
Mechanical rotation angle 300°
Output grid 5mm
L shaft length 15mm
Max. Operating voltage 200V
Diameter of the mounting opening 7.2mm
