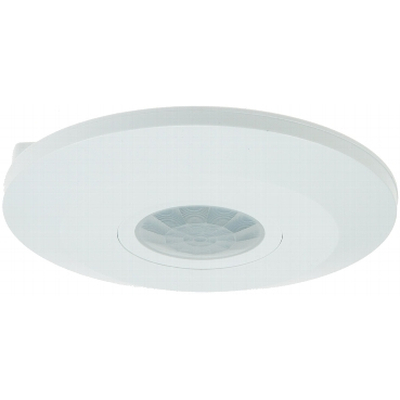

PIR motion detector for ceiling mounting 360° IP20 LED suitable
Description
PIR motion detector for ceiling mounting 360° IP20 LED suitable
Practical Construction IR motion detector for e.g. the staircase or the corridor. Starting at 1 watt, the detector switches your modern LED lights, LED lamps and LED lights, as well as conventional fluorescent lamps and fluorescent tubes. You can adjust the time and the light sensitivity with a simple rotary knob. Delivery includes installation material and instructions.
Practical Construction IR motion detector for e.g. the staircase or the corridor. Starting at 1 watt, the detector switches your modern LED lights, LED lamps and LED lights, as well as conventional fluorescent lamps and fluorescent tubes. You can adjust the time and the light sensitivity with a simple rotary knob. Delivery includes installation material and instructions.
- Power range 1-2000W for resistive loads such as incandescent lamps
- 1-500W for inductive loads such as LED lamps or fluorescent tubes
- Damping threshold adjustable (3-2000 lux)
- coverage angle 360 ??°
- Range 1-6m
- Switching time 10 sec. - 15 min.
- 114mm Ø, only 24mm flat!
- Installation height for ceilings 2,2 - 4m

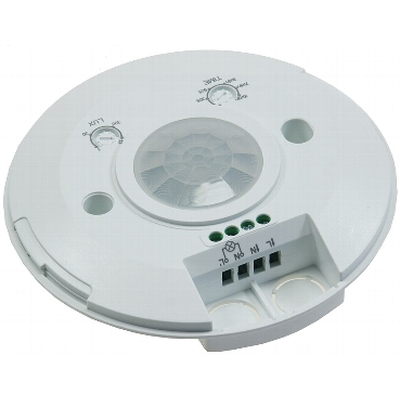

- Easy installation with 4-pin connection
- Operation on 230V ~ / 50Hz
- Self-consumption StandBy 0.1W, in operation 0.45W
- IP20, indoor only
