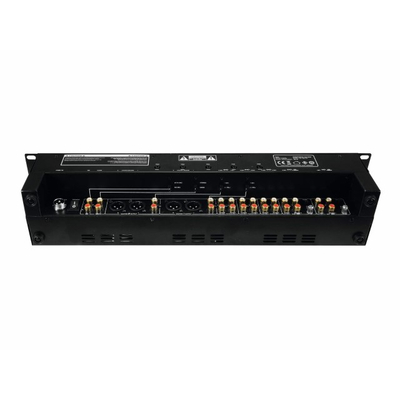

Multifunctional 5+2-channel installation mixer - EM-550B

Item number: 6010007101

Category: Mixers

249,50 €

including 19% VAT. , (Standard)

From piece Price per unit
2 242,01 €
Available

Shipping time: 2 - 5 workdays

piece

Description

Multifunctional 5+2-channel installation mixer - EM-550

  • 5 input channels with recessed gain controls on the rear panel, signal LED and super smooth dual-rail channel faders
  • 2 separate microphone channels with level control, 3-way equalizer and talkover button
  • Talkover level and response time adjustable
  • Pre-fader listening (CUE) to the stereo input channels via adjustable headphone output
  • Color illuminated rotary controls and rubber buttons
  • 1 additional line input with level control on the front panel
  • 2 adjustable master outputs with 3-way equalizer and 10-digit stereo LED level meter
  • 1 adjustable booth output with mono/stereo selector switch
  • 2 record outputs (independent of the master channels) with on/off switch for microphone signals
  • Inputs: 9 x line (stereo RCA), 2 x line/phono (stereo RCA), switchable; 2 x microphone (XLR/6.3 mm jack) and headphones (6.3 mm jack)
  • Outputs: 2 x master (optionally 3-pin XLR or stereo RCA), 1 x booth (stereo RCA) and 2 x record (stereo RCA)
  • Operation via supplied power unit
  • Rack installation, 2 U
  • Ideal for restaurants, bars, theme parks, hotels and all applications where microphones need to be mixed with music (e.g. karaoke)

Technical specifications:

Power supply: 230 V AC, 50 Hz ~,
via supplied power unit
Power consumption: 35 W
Inputs:
Microphone 1,2 combined XLR/6.3 mm jack (1/4") (bal.)
Minimum input voltage: 1 mV RMS
Line 1-8, Aux 1,2: stereo RCA
Minimum input voltage: 150 mV RMS
Phono 1,2: stereo RCA
Minimum input voltage: 3 mV RMS
Outputs:
Master 1,2: stereo RCA, stereo XLR
Output voltage: 0.75 V/1.5 V RMS (switchable)
Booth: stereo RCA (switchable to mono operation)
Output voltage: 0.75 V RMS
Record: stereo RCA
Output voltage: 0.75 V RMS
Headphones: 6.3 mm stereo jack (min. 8 ohms)
Tone control (microphone 1,2; output 1,2):
4 x High: -12 dB to +12 dB/ 10 kHz
4 x Mid: -12 dB to +12 dB/ 1 kHz
4 x Low: -12 dB to +12 dB/ 100 Hz
Talkover attenuation: -15 dB
S/N ratio: >65 dB
Frequency range: 20-20000 Hz
Distortion: 0.03 %
Dimensions (WxHxD): 483 x 115 x 90 mm (19", 2 U)
Weight: 4 kg
Shipping weight: 4.20 kg
