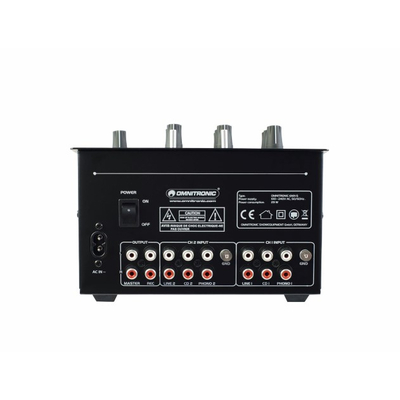

2 channel DJ mixer - PM-222

Item number: 6010006819

Category: Mixers

119,50 €

including 19% VAT. , (Standard)

From piece Price per unit
2 115,92 €
Available

Shipping time: 2 - 5 workdays

piece

Description

2 channel DJ mixer - PM-222
  • 2 input channels with gain control, 2-way equalizer and phono/line switching
  • DJ microphone input with level control
  • Pre-fader listening (CUE) to the stereo input channels via adjustable headphone output, with cue mix control
  • Replaceable crossfader for crossfading between both channels
  • 6-digit stereo LED level meter and master level control
  • Inputs: 4 x line and 2 x phono (stereo RCA), DJ microphone and headphones (6.3 mm jack)
  • Outputs: master and record (stereo RCA)

Technical specifications:

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 30 W
Inputs:
DJ MIC: 6.3 mm jack
Minimum input voltage: 3 mV RMS/ 47 kohms
LINE: stereo RCA
Minimum input voltage: 150 mV RMS/ 47 kohms
PHONO: stereo RCA
Minimum input voltage: 3 mV RMS/ 47 kohms
Outputs:
MASTER: stereo RCA
Max. output level: +19 dBu
Output voltage: 7 V RMS
REC: stereo RCA
Output voltage: 2.4V RMS
Headphones: 6.3 mm stereo jack (min. 32 ohms)
Tone control:
2 x High: -24 dB to +15 dB/ 12 kHz
2 x Low: -24 dB to +15 dB/ 100 Hz
S/N ratio: >70 dB
Frequency range: 20-20000 Hz
Distortion: <0.025%
Dimensions (LxWxH): 260 x 190 x 137 mm
Weight: 2 kg
Shipping weight: 2.35 kg
