Motion detector 120° for damp rooms IP54

Item number: 100234680

Category: PIR Motion detector

14,75 €

including 19% VAT. , (Standard)

From piece Price per unit
2 14,31 €

Shipping time: 17 - 20 workdays

Available from: 15.02.2025 (Pre-order is possible)
piece

Description

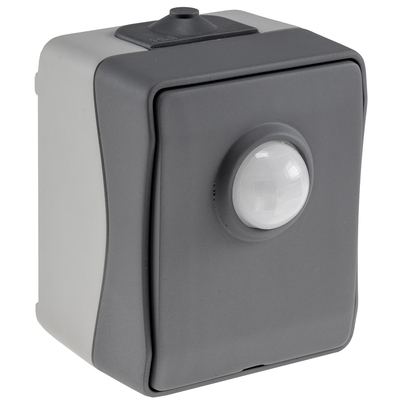

Motion detector 120° for damp rooms IP54
Splash-proof, surface-mounted motion detector for 250V/50Hz, 2-500W. Suitable for NUQUI wet room series.

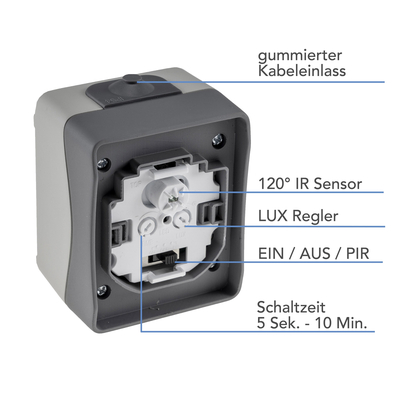

  • light gray frame with dark gray cover on-off PIR switch
  • Twilight switching threshold adjustable (2-1000Lux)
  • Switching time 5 seconds - 10 minutes

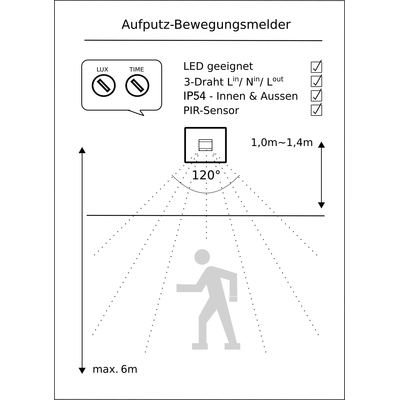

  • Detection angle 120°
  • Range max. 6m
  • Dimensions HxWxD 77x62x55mm
  • Installation height 100-140cm
  • Easy installation with 3-pin connection (L,N, Lout)
  • Power range
      Resistive loads such as incandescent lamps 2-500W ,
      • Inductive loads (fluorescent tubes) 2-300W
      LED lights  2-100W
  • Operating voltage 230V~/ 50Hz
  • Own consumption stand-by 0.5W, in operation 0.9W
  • Protection class IP54
  • suitable for inside and outside
