Model railway distributor type 1 - DM425
Description
Model railway distributor type 1 - DM425

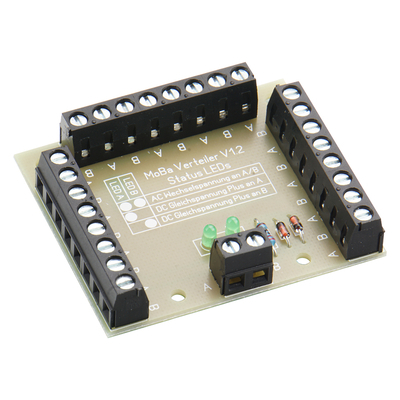

Thanks to the model railway distributor type 1, it is possible to conveniently wire underneath the model railway system. New consumers or sections of track can be quickly supplied with voltage via the high-quality screw terminals. All terminal points marked "A" are interconnected, just like all points marked "B". Next to each "A" terminal there is a "B" terminal so you can connect your consumers clearly without cable chaos. The status LEDs allow you to... You can see at any time whether there is voltage on the circuit board or not, without having to measure. If both LEDs light up, there is an alternating voltage at "A" and "B". If only LED "A" lights up, there is also a direct voltage Plus at "A" and minus at "B". If only LED "B" lights up, there is a DC voltage with plus at "B" and minus at "A. Ready assembled and tested circuit board including detailed instructions.
Thanks to the model railway distributor type 1, it is possible to conveniently wire underneath the model railway system. New consumers or sections of track can be quickly supplied with voltage via the high-quality screw terminals. All terminal points marked "A" are interconnected, just like all points marked "B". Next to each "A" terminal there is a "B" terminal so you can connect your consumers clearly without cable chaos. The status LEDs allow you to... You can see at any time whether there is voltage on the circuit board or not, without having to measure. If both LEDs light up, there is an alternating voltage at "A" and "B". If only LED "A" lights up, there is also a direct voltage Plus at "A" and minus at "B". If only LED "B" lights up, there is a DC voltage with plus at "B" and minus at "A. Ready assembled and tested circuit board including detailed instructions.
Technical information:
- - 26 terminal points
- 13x "A" and 13x "B"
- Status LEDs
- Current carrying capacity per terminal - max. 6A
- Total current carrying capacity - max. 8A ( Power supply on 2-pole terminal)
- Maximum voltage - 30V AC/DC
- Dimensions approx. (L x W x H) - 60mm x 52mm x 13mm
- 4 drill holes for board mounting "
