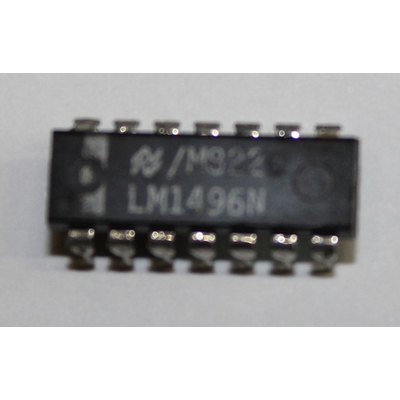

LM1496N Balanced Modulator-Demodulator
Description
General Description
The LM1596 LM1496 are doubled balanced modulator-de-
modulators which produce an output voltage proportional to
the product of an input (signal) voltage and a switching (car-
rier) signal Typical applications include suppressed carrier
modulation amplitude modulation synchronous detection
FM or PM detection broadband frequency doubling and
chopping
The LM1596 is specified for operation over the 55°C-
125° C military temperature range The LM1496 is speci-
a
fied for operation over the 0 °C to
70° C temperature range.
Excellent carrier suppression
Features
Excellent carrier suppression
Y
65 dB typical at 0 5 MHz
50 dB typical at 10 MHz
Adjustable gain and signal handling
Y
Fully balanced inputs and outputs
Y
Low offset and drift
Y
Wide frequency response up to 100 MHz
