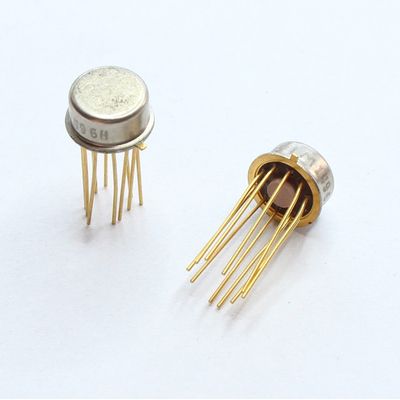

LM1496H Symmetrical Modulator-Demodulator TO-99-8
Description
LM1496H Symmetrical Modulator-Demodulator TO-99-8
The LM1496 is a symmetrical, double-carrier modulator. It generates an output voltage proportional to the product of the input voltage (signal) and the switching signal (carrier). Typical applications include: suppressed carrier modulation, amplitude modulation, synchronous detection, FM or PM detection, broadband frequency doubling, and chopping.
The LM1496 is a symmetrical, double-carrier modulator. It generates an output voltage proportional to the product of the input voltage (signal) and the switching signal (carrier). Typical applications include: suppressed carrier modulation, amplitude modulation, synchronous detection, FM or PM detection, broadband frequency doubling, and chopping.
- Temperature range from 0 °C to 70 °C
- Excellent carrier rejection: Typically 65 dB at 0.5 MHz, 50 dB at 10 MHz
- Adjustable gain and signal processing
- Fully balanced inputs and outputs
- Low offset and drift deviation
- Wide frequency response up to 100 MHz
