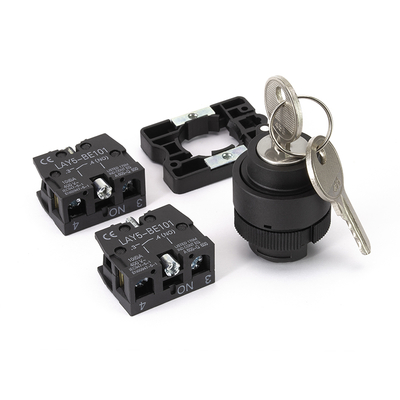

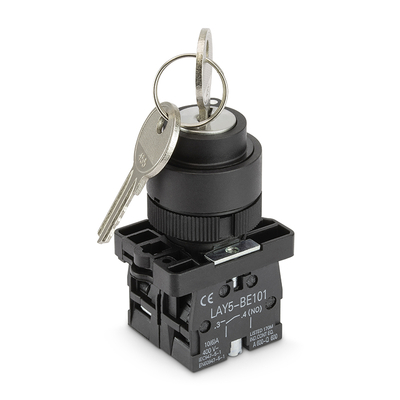

Key button 22mm 2 x 1 x (one) 400V 10A
Description
Key button 22mm 2 x 1 x (one) 400V 10A
for industry and control cabinet construction or home applications with the following properties: 2 switching positions (left and right, one switch contact is operated on the left and right, key can only be removed on the left, basic position on the left),
for industry and control cabinet construction or home applications with the following properties: 2 switching positions (left and right, one switch contact is operated on the left and right, key can only be removed on the left, basic position on the left),
- 2 switching contacts (2 x make contacts) max. 400 V AC / 10 A
- Installation diameter 22 mm
- Thread height 10 mm
- Installation depth 45 mm
- Construction height 20 mm
- Screw terminals for 0.75 - 2.5mm² cable
- Switch contacts are securely screwed and replaceable
- Easy assembly
- ergonomic design
- modular structure
- Material plastic
- With O-ring for sealing
- incl. 2 keys
- Switch series IN1.
