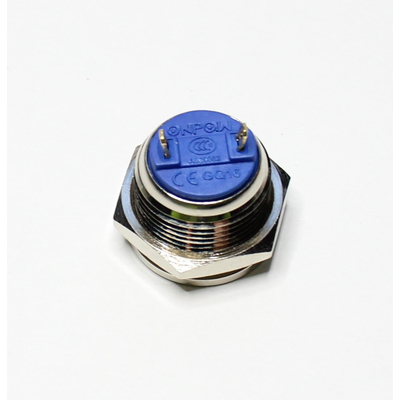

Full metal push button 16mm 1 x (on) solder connection IP65
Description
Full metal button 16mm 1 x (on) solder connection
- Manufacturer ONPOW
- Switch type vandal-proof
- Number of positions 2
- Number of stable positions
- 1-digit contact configuration SPST-NO
- Contact load capacity DC @R (with ohmic load) 2 A / 36 VDC
- Sealing class IP65
- Switching method (the position indicated in brackets has a temporary character) OFF-(ON)
- Lighting missing
- Lighting color missing
- Outputs solder connection
- Operating temperature -20...55°C
- Electrical lifespan 200,000 cycles
- Switching force 4N
- Mechanical durability 1000000 cycles
- Switch shape flat
- Mounting dimensions Ø16mm
- Body color silver
- Housing material: nickel-plated brass
- Ring type flat
