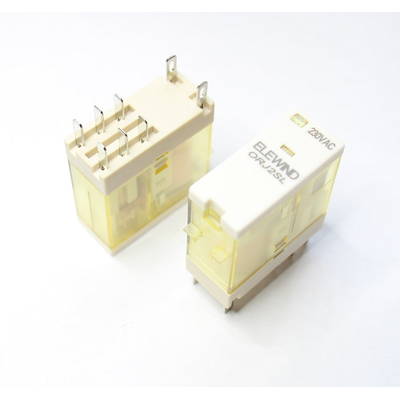

Relay 230VAC 8A 2xon/(on) - ORJ1SL

Item number: ORJ1SL

    Small size
    easy to assemble
    High contact load 8A
    High sensitivity
    Plug-in installation

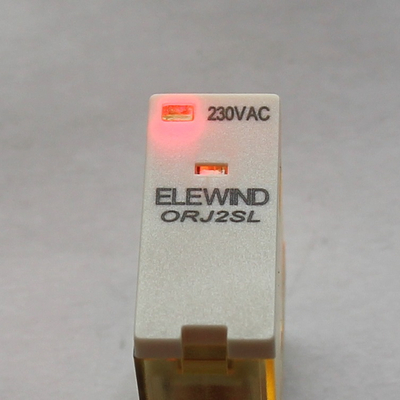

    Indicator LED

Category: Relays 230VAC


5,75 €

including 19% VAT. , (Standard)

From piece Price per unit
2 5,58 €
4 5,40 €
In stock!

Shipping time: 2 - 5 workdays

piece


Description

Relay 230VAC  8A 2xon/(on) - ORJ1SL
    Rated load(Resistive load): 8A/250VAC,30VDC
    Switching power(Resistive load): 2000VA,240W
    Contact resistance(initial): ?50m?
    Contact materials: Ag alloy
    Electrical life: ?100,000 cycles
    Mechanical life: AC: 3,000,000 cycles/DC: 5,000,000 cycles
    Must-operate voltage (23?): DC:<75% (rated voltage) AC:<80% (rated voltage) 50/60Hz(rated voltage)
    Must-release voltage (23?): DC: ?10% (rated voltage) AC: ?30% (rated voltage) 50/60Hz(rated voltage)
    Maximum voltage(23?): 110% (rated voltage)
    Coil power consumption: DC(W): Approx.0.53/AC (VA): Approx.0.9
    Operate time (rated voltage): <20ms Insulation resistance: 1000M?(500VDC)A)

    Dielectric Strength:

      Between contacts cfsame polanty: 1000VAC/1min
      Between contacts cfdifferent polsrity: 3000VAC/lmin (Leakage current 1mA)
      Between contact and coil: 5000VAC/lmin (Leakage current 1mA)

    Ambient temperature: -40~+70?
    Ambient humidity: 5%-85%RH
    Atmospheric pressure: 86-106KPa
    Shock resistance: 980m/S²
    Vibration resistance: 10-55Hz double amplitude:1.5mm
    Installation mode: Plug-In type
    Packaging form: Dust cover type
