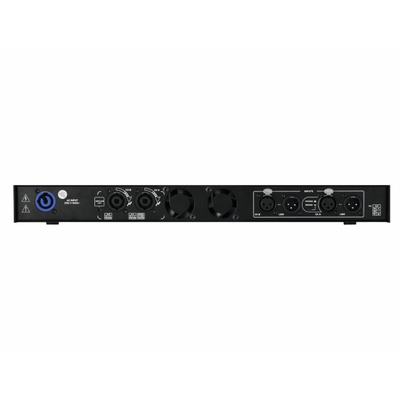

Class D PA amplifier with integrated SMPS 2 x 510 W XDA-1002

Item number: 6010451635

Category: PA amplifier


399,00 €

including 19% VAT. , (Standard)

From piece Price per unit
2 391,02 €
Available

Shipping time: 2 - 5 workdays

piece


Description

Class D PA amplifier with integrated SMPS 2 x 510 W XDA-1002
  • Stereo PA amplifier with class D circuitry
  • Low weight and height due to integrated switch mode power supply
  • Speaker switch-on delay and auto limiters
  • 2 operating modes can be selected (stereo or bridged)
  • 2 level controls
  • LEDs for activated protective circuit, limiter, signal, and power
  • Complete protection set against short-circuit, overheat, DC voltage, power on/off transients, softstart
  • Ground lift switch against humming
  • Fan cooling
  • Electronically balanced inputs via XLR mounting jacks with feed-through output
  • Speaker outputs via lockable speaker jacks
  • Rack installation with 1 unit



Technical specifications:

Power supply: 230 V AC, 50 Hz
Power consumption: 210 W (1/8 Power)
Power (RMS):
Stereo 4 Ohm 2 x 510 W
Stereo 8 Ohm 2 x 300 W
8 ohms bridged 1 x 1000 W
Frequency range: 30-20000 Hz
Distortion factor: <0,02 %
Power amplification: 36 dB an 8 ohms
Noise level: >100 dB
Input Impedance: 20 kOhm (balanced), 10 kOhm (unbalanced)
Input Sensitivity: 1,25 V RMS
Connections Input: 2 x XLR
Connections Output: 2 x speaker, 2 x loop output XLR2 x Speaker, 2 x Durchschleifausgang XLR
Circuit: Class D
Controls power switch, volume control per channel, operation selector (stereo / bridge), groundlift switch
LED indicator: Protect, Limit, Signal, Power
Protection circuits: short circuit, overheating, DC voltage, switch-on impulses, softstart
Construction: Steel chassis
Dimensions (TxWxH): 240 x 483 x 44 mm (19", 1 U)
Weight: 4,00 kg
Shipping weight: 4,65 kg
