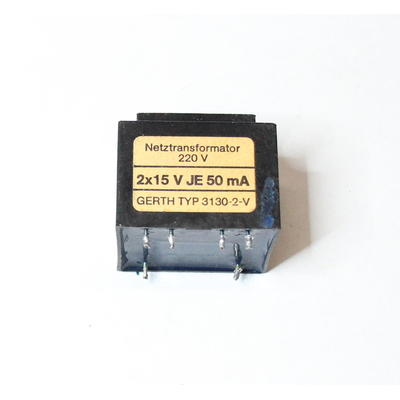

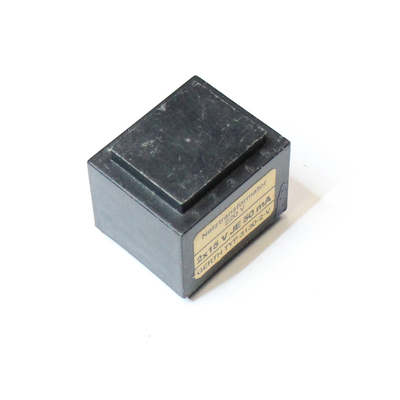

Transformer Prim. 220V Sec. 2 x 15V 50mA used - 3130-2-V Gerth
Description
Transformer Prim. 220V Sec.2 x 15V 50mA used - 3130-2-V Gerth
- Manufacturer Gerth
Transformer type coated
Power 1.8VA
Primary voltage 230V
Secondary voltage 15V (at 230CV approx. 15.7V)
Current of the secondary winding 2 x 50mA
Open circuit voltage factor -
Efficiency -
Test voltage 4000V
Assembly PCB
Thermal class ta 70°/B
External dimensions 32x27x26.7mm
Pitch dimensions 20 mm
Pitch dimensions 2 5-10-5 mm
