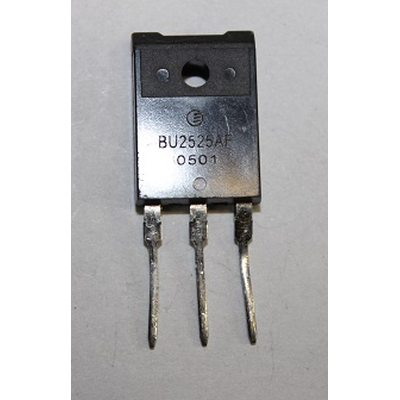

BU2525AF NPN 800V 12A 45W SOT199
Description
BU2525AF
Material of transistor: Si
Polarity: NPN
Maximum collector power dissipation (Pc), W: 45
Maximum collector-base voltage |Ucb|, V: 1500
Maximum collector-emitter voltage |Uce|, V: 800
Maximum emitter-base voltage |Ueb|, V: 5
Maximum collector current |Ic max|, A: 12
Maksimalna temperatura (Tj), °C: 150
Transition frequency (ft), MHz:
Collector capacitance (Cc), pF: 145
Forward current transfer ratio (hFE), min: 5
Noise Figure, dB: -
Package of BU2525AF transistor: SOT199
