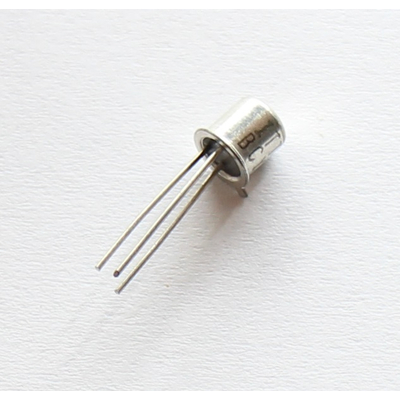

BCY79C PNP 45V 200mA 350mW TO18
Description
BCY79C PNP 45V 200mA 350mW TO18
- Material of Transistor: Si
- Polarity: PNP
- Maximum Collector Power Dissipation (Pc): 0.35 W
- Maximum Collector-Base Voltage |Vcb|: 45 V
- Maximum Collector-Emitter Voltage |Vce|: 45 V
- Maximum Emitter-Base Voltage |Veb|: 5 V
- Maximum Collector Current |Ic max|: 0.2 A
- Max. Operating Junction Temperature (Tj): 200 °C
- Transition Frequency (ft): 180 MHz
- Collector Capacitance (Cc): 7 pF
- Forward Current Transfer Ratio (hFE), MIN: 250
- Noise Figure, dB: -
- Package: TO18
