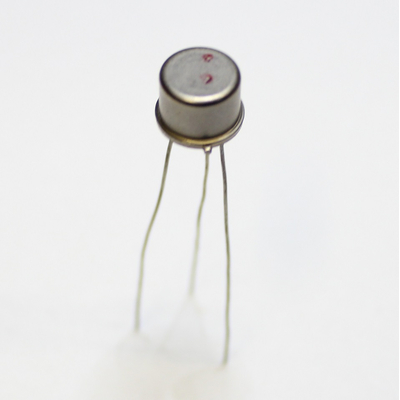

ASY23 PNP 80V 300mA 850mW TO5
Description
ASY23 PNP 80V 300mA 850mW TO5
- Material of Transistor: Ge
- Polarity: PNP
- Maximum Collector Power Dissipation (Pc): 0.85 W
- Maximum Collector-Base Voltage |Vcb|: 80 V
- Maximum Collector-Emitter Voltage |Vce|: 80 V
- Maximum Emitter-Base Voltage |Veb|: 20 V
- Maximum Collector Current |Ic max|: 0.3 A
- Max. Operating Junction Temperature (Tj): 75 °C
- Transition Frequency (ft): 0.5 MHz
- Forward Current Transfer Ratio (hFE), MIN: 30
- Noise Figure, dB: -
- Package: TO5
