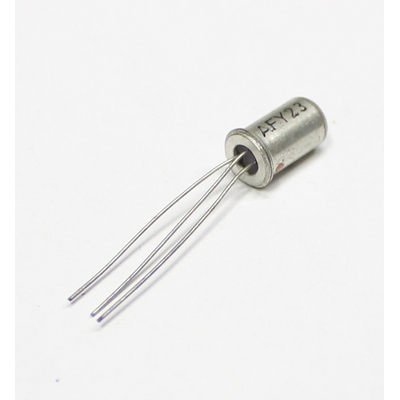

AFY23 PNP 15V 100mA 150mW TO1
Description
AFY23 PNP 15V 100mA 150mW TO1
- Material of Transistor: Ge
- Polarity: PNP
- Maximum Collector Power Dissipation (Pc): 0.15 W
- Maximum Collector-Base Voltage |Vcb|: 15 V
- Maximum Collector-Emitter Voltage |Vce|: 10 V
- Maximum Collector Current |Ic max|: 0.1 A
- Max. Operating Junction Temperature (Tj): 75 °C
- Transition Frequency (ft): 10 MHz
- Collector Capacitance (Cc): 20 pF
- Forward Current Transfer Ratio (hFE), MIN: 60
- Noise Figure, dB: -
- Package: TO1
