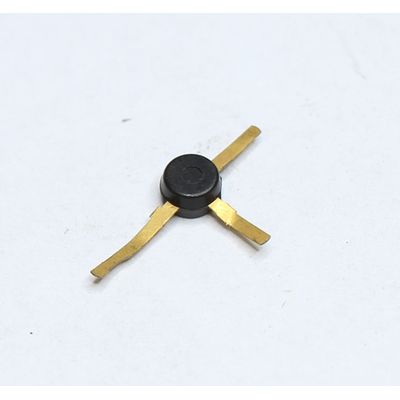

AF279 PNP 15V 10mA 60mW TO50
Description
AF279 PNP 15V 10mA 60mW TO50
- Material of Transistor: Ge
- Polarity: PNP
- Maximum Collector Power Dissipation (Pc): 0.06 W
- Maximum Collector-Base Voltage |Vcb|: 15 V
- Maximum Collector-Emitter Voltage |Vce|: 15 V
- Maximum Collector Current |Ic max|: 0.01 A
- Max. Operating Junction Temperature (Tj): 90 °C
- Transition Frequency (ft): 400 MHz
- Collector Capacitance (Cc): 0.9 pF
- Forward Current Transfer Ratio (hFE), MIN: 10
- Noise Figure, dB: -
- Package: TO50
