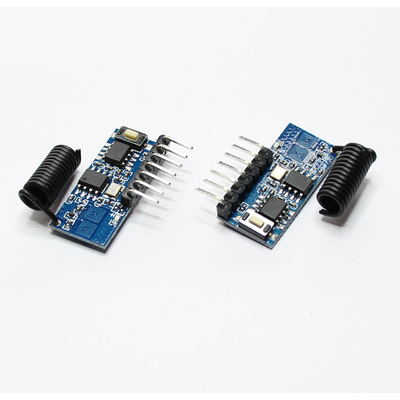

433MHz Receiver 4 Channel 3.3-5VDC

433MHz Receiver 4 Channel 3.3-5VDC

---

• Model: RX480E-4WCZDTX
• Operating Frequency: 433 MHz
• Operating Temperature: -25 ~ 85 °C
• Frequency Band: +-0.2 MHz
• Reception Distance: 20-50M (open line of sight)
• Reception Sensitivity: -108 dB
• Quiescent Current: <= 5ma="" operating="" voltage:="" 3.3="" -="" 5vdc="">
• Dimensions 28×12×8mm
• Good selectivity and ability to suppress scattered radiation

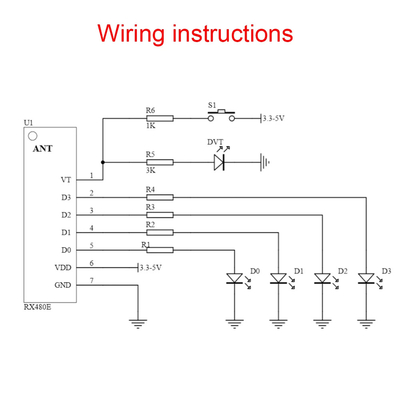

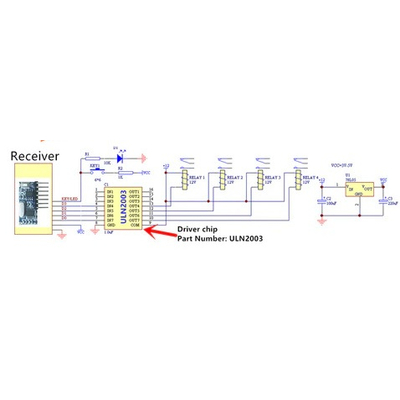

Connections:

• GND
• VCC +
• D0: Output 1
• D1 Output 2
• D2 Output 3
• D3 Output 4
• VT: Output

Programming

Delete all settings: Press the learn button on the receiver eight times to delete all settings.

Setting as a push button
Press the learn button on the receiver once to save your remote control as a push button.
Wait a moment, the LED goes out, and the learning state is activated.
Press a button on the remote control; the LED indicator on the receiver board flashes and then goes out.
After 3 seconds, the LED indicator lights up again; the learning process is successful.

Setting as a Toggle Switch
Press the learning button on the receiver twice to enter toggle setting mode.
Wait a moment, the LED will go out and the learning state will be activated.
Press a button on the remote control, the LED indicator on the receiver board will flash and then go out.
After 3 seconds, the LED indicator will light up again, indicating the learning process is successful.

Setting as a Switch
Note: If you select the latching mode, you will need to learn different buttons to learn additional remote controls.
The first button is for "ON", the second for "OFF". Example: Button A = ON, Button B = OFF
Press the learn button on the receiver three times to enter latching mode.
Wait a moment. The LED indicator on the receiver board flashes and then goes out.
Press button A on the remote control. The LED flashes five times. Press button B on the remote control.
The LED flashes five times. After 3 seconds, the LED indicator lights up again. The learning process is successful. A = ON, B = OFF.

Introduction to the operating mode:

1. Press the learning button on the module once. After learning, the remote control will enter jogging mode.
2. Press the learning button on the module twice. After learning, the remote control will enter self-locking mode.
3. Press the learning button on the module three times. After learning, the remote control will enter locking mode.
4. Press the learning button on the module four times. After learning, the remote control will enter two-way self-locking + two-way jogging mode.
5. Press the learning button on the module five times. After learning, the remote control will enter two-way jogging + two-way locking mode.
6. Press the learning button on the module six times. After learning, the remote control will enter two-way self-locking + two-way locking mode.
7. Press the learn button on the module seven times. After learning the remote control, you will enter two-way locking mode. Explanation of the purpose of this LED output signal: When any button on the remote control is pressed and the receiver decodes correctly, the LED output outputs a high-level signal (1). When the remote control button is released, the LED output changes to 0. This means: The signal is only output if the reception is valid and has been decoded correctly.
