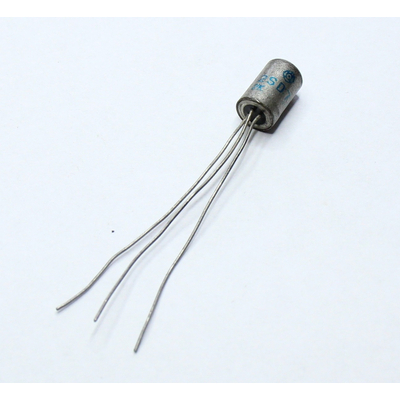

2SD77 Transistor NPN 25V 100mA 150mW TO1
Description
2SD77 Transistor NPN 25V 100mA 150mW TO1
- Material of Transistor: Ge
- Polarity: NPN
- Maximum Collector Power Dissipation (Pc): 0.15 W
- Maximum Collector-Base Voltage |Vcb|: 25 V
- Maximum Collector-Emitter Voltage |Vce|: 25 V
- Maximum Emitter-Base Voltage |Veb|: 12 V
- Maximum Collector Current |Ic max|: 0.1 A
- Max. Operating Junction Temperature (Tj): 150 °C
- Transition Frequency (ft): 2 MHz
- Forward Current Transfer Ratio (hFE), MIN: 40
- Noise Figure, dB: -
- Package: TO1
- Signs of storage
