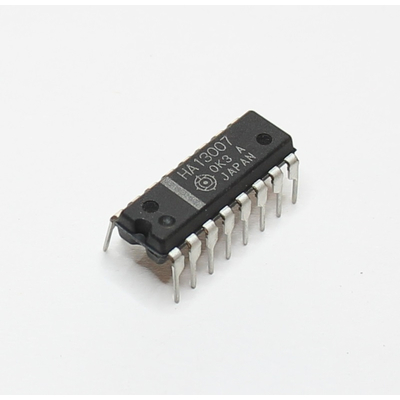

HA13007 Quad Driver
Description
HA13007 Quad Driver
The HA13007 monolithic, bipolar, high-voltage, high-current quad driver is especially designed for switching applications. This device is recommended for interfacing low-level logic to peripheral loads such as relays, solenoids, stepping motors, LED, heaters, and other similar highvoltage, high-current loads.
The HA13007 monolithic, bipolar, high-voltage, high-current quad driver is especially designed for switching applications. This device is recommended for interfacing low-level logic to peripheral loads such as relays, solenoids, stepping motors, LED, heaters, and other similar highvoltage, high-current loads.
- Guaranteed minimum output breakdown of 60 V, and maximum output current of 0.7 A
- Low output collector-emitter saturation voltage
- Input compatible with TTL, LSTTL and 5 V CMOS.
- Integral transient suppression diodes for inductive loads HA13007 Pin Arrangement (DP-16C)
- Lower input current
