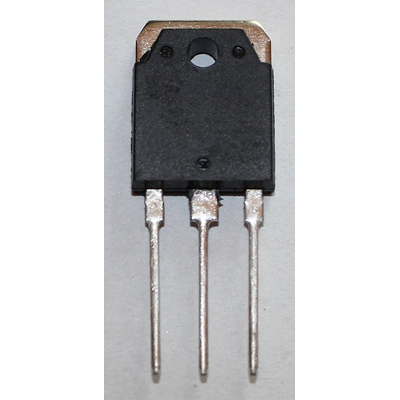

2SC3182 NPN 140V 10A 100W TO247
Description
2SC3182 NPN 140V 10A 100W TO247
- Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 100 W
Maximum Collector-Base Voltage |Vcb|: 140 V
Maximum Collector-Emitter Voltage |Vce|: 140 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 10 A
Max. Operating Junction Temperature (Tj): 125 °C
Transition Frequency (ft): 30 MHz
Collector Capacitance (Cc): 220 pF
Forward Current Transfer Ratio (hFE), MIN: 55
Noise Figure, dB: -
Package: TO247
