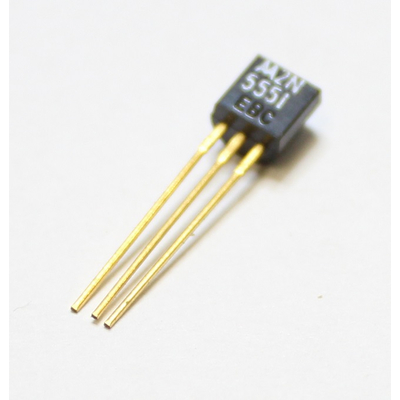

2N5551 NPN 160V 0,6A 0,630W TO 92

Item number: 2N5551

Category: 2N...


0,85 €

including 19% VAT. , (Standard)

In stock!

Shipping time: 2 - 5 workdays

piece


Description

2N5551 NPN 160V 0,6A 0,630W TO92
  • Material of Transistor: Si
  • Polarity: NPN
  • Maximum Collector Power Dissipation (Pc): 0.31 W
  • Maximum Collector-Base Voltage |Vcb|: 180 V
  • Maximum Collector-Emitter Voltage |Vce|: 160 V
  • Maximum Emitter-Base Voltage |Veb|: 6 V
  • Maximum Collector Current |Ic max|: 0.6 A
  • Max. Operating Junction Temperature (Tj): 135 °C
  • Transition Frequency (ft): 100 MHz
  • Collector Capacitance (Cc): 6 pF
  • Forward Current Transfer Ratio (hFE), MIN: 80
  • Noise Figure, dB: -
  • Package: TO92
