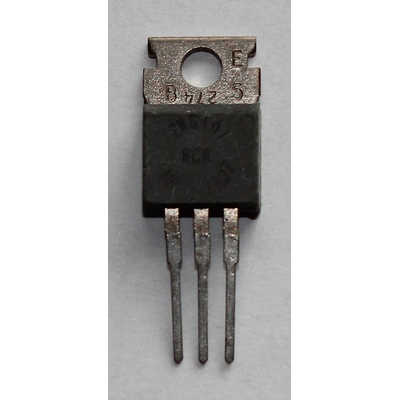

2N6101 NPN 80V 10A TO 220
Description
2N6101 NPN 80V 10A 75W TO 220
- Material of Transistor: Si
- Polarity: NPN
- Maximum Collector Power Dissipation (Pc): 75 W
- Maximum Collector-Base Voltage |Vcb|: 80 V
- Maximum Collector-Emitter Voltage |Vce|: 70 V
- Maximum Emitter-Base Voltage |Veb|: 8 V
- Maximum Collector Current |Ic max|: 10 A
- Max. Operating Junction Temperature (Tj): 150 °C
- Transition Frequency (ft): 0.8 MHz
- Forward Current Transfer Ratio (hFE), MIN: 20
- Noise Figure, dB: -
- Package: TO220
