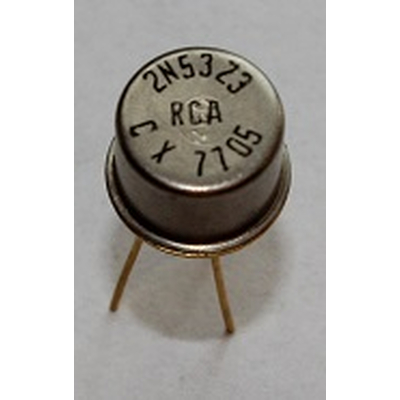

2N5323 PNP 75V 2A 10W TO39
Description
2N5323 PNP 75V 2A 10W TO39
- Material of Transistor: Si
- Polarity: PNP
- Maximum Collector Power Dissipation (Pc): 10 W
- Maximum Collector-Base Voltage |Vcb|: 75 V
- Maximum Collector-Emitter Voltage |Vce|: 50 V
- Maximum Emitter-Base Voltage |Veb|: 5 V
- Maximum Collector Current |Ic max|: 2 A
- Max. Operating Junction Temperature (Tj): 200 °C
- Transition Frequency (ft): 50 MHz
- Collector Capacitance (Cc): 40 pF
- Forward Current Transfer Ratio (hFE), MIN: 40
- Noise Figure, dB: -
- Package: TO39
