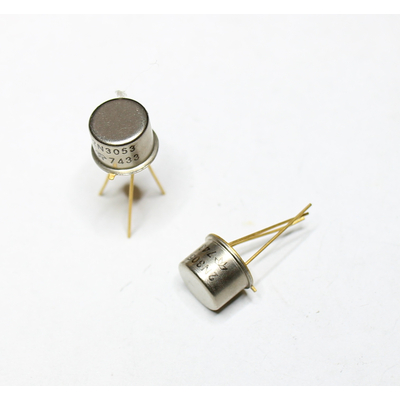

2N3053 NPN Bipolarer 40V 500mW 700mA TO5
Description
2N3053 NPN Bipolarer 40V 500mW 700mA TO5
- Material of Transistor: Si
- Polarity: NPN
- Maximum Collector Power Dissipation (Pc): 1 W
- Maximum Collector-Base Voltage |Vcb|: 60 V
- Maximum Collector-Emitter Voltage |Vce|: 40 V
- Maximum Emitter-Base Voltage |Veb|: 5 V
- Maximum Collector Current |Ic max|: 0.7 A
- Max. Operating Junction Temperature (Tj): 200 °C
- Transition Frequency (ft): 100 MHz
- Collector Capacitance (Cc): 15 pF
- Forward Current Transfer Ratio (hFE), MIN: 50
- Noise Figure, dB: -
- Package: TO5
